PALOMAR
Dimension and Details

​Murphy Desk Bed- queen size with Stay-Level desk​

​​

​​​​​​Made in the US from hardwood maple veneer and trimmed in solid hardwood beech.  It features a unique balancing mechanism with our safe, piston lift system. Everything up to 13" tall can remain on the desk when you open the bed.  It accepts an 11" thick mattress that sits into a wood surround, which gives you a place to tuck in your bedding.
Your bed is stored ready for guests. ​

Why Customers Love it​

  • Perfect for your home office- large workspace and guest bed in one

  • Maximizes space without sacrificing comfort

  • Both a bed and a desk in the same space

  • Designed for everyday use—commercial grade---not occasional use

  • Clean, modern look with hidden functionality

  • Engineered for safety, durability, and long-term performance

  • Size-Queen Size Vertical Desk Bed

  • Closed Dimension-  68" wide x 48.5" deep x 90" high (Desk does not fold up)

  • Open Dimension- 68" wide x 81" deep x 90" high

  • Desk Dimension-​23.5" deep by 60" long x 31.5" high desktop- allows you to really spread out your project.

  • Desk Clearance-Items up to 13" tall can remain on the desktop when you open the bed.

  • Easy access to both sides of the bed.

  • Mattress-Accepts a regular, comfortable 11" queen-size mattress, approximately 80 lbs—not a fold-up mattress.

  • Construction

    • Made in the USA

    • Hardwood maple veneer, and trimmed in solid beech

    • The top is a complete box construction with steel reinforcement​- not just a flat board

    • Mattress Platform has internal I-Beams for added strength

    • Mattress Surround-mattress sits within a wood surround, so you can store your bed made and ready to use.​​

  • Cord Management-Gap behind the desktop for electrical cords

  • Light Set-Dual Purpose- Optional LED light set shines on the desktop and the bed when open.

  • Assembly is required

PVB50 DIMM.jpg
DVB50 OPEN.png
Dimentions

BED SIZE

Sizes

Queen Vertical

Desk Dimensions

68" wide x 48.5" deep x 90" high

Bed Open Dimensions

68" wide x 81.5" deep x 90" high

Mattress Depth

11"

FINISH COLOR

Our beds are made from Maple hardwood veneer and trimmed in solid hardwood Beech. When selecting a lighter stain, there is a variation between the bed and the molding, creating a two-tone effect.

Variations in color, grain, and natural markings are inherent to real wood and are not considered defects. Each piece will have unique tonal differences and may subtly reveal joinery and grain patterns, reflecting authentic wood craftsmanship. Actual product color may vary from what appears on your screen due to display settings and lighting conditions. Wallbeds Company is not responsible for these differences. We recommend requesting a wood finish sample when placing your order.

HARDWARE


BED LIGHT OPTION

palomar-murphy-desk-bed-vertical-bookcases-home-officejpg
USB PORT INFO.jpg

SMART DESIGN- LED LIGHTS IN THE CABINET TOP SHINE DOWN ON THE DESK AS WELL AS THE BED WHEN OPEN.

​On-Off switch is conveniently located on the left cabinet side -reachable from both the desk and the bed. USB A-C port on the headboard  left side facing

​

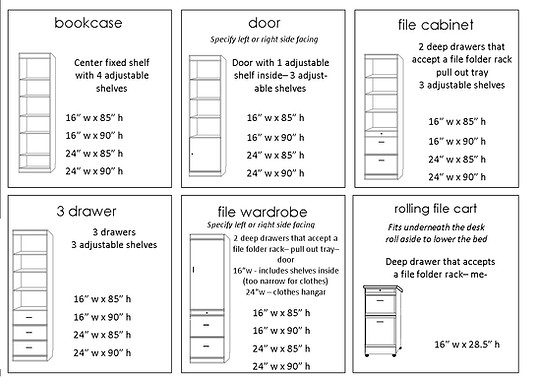

STORAGE SIDE CABINETS

DEPTH

  • 17" deep to provide deep drawers with generous storage. Steps back 6" from the desk bed cabinet

HEIGHT

  • 90", the same height as the bed

CHOICE OF WIDTH:

  • 16" wide

  • 24" wide​

CONSTRUCTION

  • Solid wood drawer box surround, with plywood bottom

  • Sanded and lacquered interior​

  • Full extension drawer glides​

  • Adjustable shelves

  • 1" x 6" baseboard notch

  • The cabinet is finished on both sides and the front for greater placement flexibility.

Click image to enlarge

P CABINETS DESK BED VERTICAL_edited.jpg

CHOOSE A MATTRESS

We offer two firmnesses: MEDIUM PLUSH & LUXURY FIRM

Our mattresses are specifically designed to fit our beds.We partnered with MAXIM mattress to offer quality mattresses that are made in California under the strictest laws in the country. They are 10" thick to allow for you to keep your mattress pad, sheets, and comforter on your bed and close it up. Pillows must be removed.

COMFORT MEDIUM PLUSH MATTRESS

  • Quilting: Bamboo Rayon Stretch Knit Fabric. 4 Layer Tack and Jump Quilting

  • Foam: Multi Layer Polyurethane Foam
    Innerspring Base Support
    CertiPUR-US® Foam

  • Padding: 1.75oz Endulator Pad

  • Stitching: 1 1⁄2” Brown Tape with Tex-45 Flameout Firefly Yellow Thread

  • Border: Multi-Needle Quilting

  • Safety: Tietix #1197 FR Cover

  • Edge Support: 360* Foam Encase Edge Support System
    3.5” of 4 sides edge casing

  • Innerspring: Classic Bonnel Innerspring Unit.Orthopedic Design

  • Coil Count: 216 Full – 312 Queen – 390

  • Comfort: Medium Plush

LUXURY FIRM MATTRESS

  • Quilting: Bamboo Rayon Stretch Knit Fabric.

  • 4 Layer Tack and Jump Quilting

  • Foam: Multi Layer Polyurethane Foam

  • 1⁄2″ Innerspring Base Support Foam

  • Layer of comfort layer HD Polyurethane Foam

  • Padding: 1.75oz Endulator Pad

  • Stitching: Deluxe Extra Large 1 3⁄4” Chocolate Tape with Tex-45 Flameout Firefly Yellow Thread

  • Safety: Tietix #1197 FR Cover

  • Edge Support: 360* Foam Encase Edge Support System
    3.5” of 4 sides edge casing

  • Innerspring: Classic 312 Innerspring Bonnel coil (Knotted coil). Orthopedic Design

  • Coil Count: Full – 312 Queen – 390

  • Comfort: Luxury Firm​​

choose better, keep forever
HOW IT IS MADE

SINCE 2005 , WE ARE THE OLDEST  U.S. MURPHY DESK BED MANUFACTURER WITH OVER 6000 DESK BEDS IN USE

TOP VERTICAL .png

BED CABINET TOP

  • Built for Strength & Longevity

  • Cabinet top features interior framed construction (not a flat board)

  • Reinforced with heavy-duty steel brackets for added strength

  • Integrated safety cable system ensures secure wall attachment

  • Provides added stability and peace of mind during operation

  • DEEP SHELF- along the wall provides a place to set items

       and your pillows on top when you close the bed.

​

SAFETY CABLE​​

A SPEC PAGE 1 JPEG_edited.jpg

MATTRESS PLATFORM

vertical tray no liner.png

Engineered Mattress Support System

  • The mattress sits on a liner board for even support and protection from the wood.

  • Internal I-beam structure beneath the liner board:

    • Supports heavy loads without flexing

    • Promotes airflow to prevent moisture buildup

  • Designed to extend mattress life and improve comfort

Triple Support System for Stability

The mattress tray is supported in three key areas:

  1. Cabinet sides

  2. Desktop surface edges

  3. Locking steel support legs

Steel legs features:

  • Automatically deploy when opened

  • Lock securely upon floor contact

  • Designed to prevent accidental displacement

Mechanism

Ingenious balancing mechanism-stay level desk. Items up to 16" tall can remain on the desk when you open the bed.

It utilizes a safe,  piston lift system.

Construction

Made from domestic hardwood maple veneer  and trimmed in solid hardwood beech. Strongest built Murphy Desk Bed on the market today.

Assembly

Easiest desk bed to assemble, as it is designed with a through-bolt system so it can be taken apart and reassembled hundreds of times over a lifetime of use.

Moving

Our beds can be moved should you change homes. Our beds require 2 able-bodied people to assemble them, as real wood components are heavy.

Parameters

The mattress platform arrives fully assembled, 4" wider and 3" longer than the mattress. It is 18" deep and it does not bend or flex — narrow stairs, tight hallway turns, or small elevators may prevent it from fitting into your room

Height

This bed fastens to your wall through the top, and it requires room above the bed height for your drill to fit. We recommend your ceiling be 6" above the bed height.

Proven Product

There are over 6,000 of our desk beds in use every day in timeshares, fire stations, college housing, hospitality, and homes like yours.

Made in USA

Manufactured in California since 1990 under the country's strictest environmental standards.

EVB50G AXQSG OPENING_edited.jpg

To open the bed

  1. Release the two black locks at each side of the bed. Standing in front of the desk, take hold of the handle and pull while you are also pushing down on the desk.

  2. Once partially opened, the piston lift system takes over to assist as it opens to the floor.

  3. Never push down on the bed.

To close the bed

  1. Standing at the end of the bed, lift the mattress platform.

  2. Once the bed is halfway lifted, grab the handle to control its closing.​​​​

OPERATION

ASSEMBLY

QUALITY BUILT TO LAST PAGE 2_edited.jpg

Our Bolt and Nut System

Our desk bed goes together with bolts, making it the easiest in the industry to assemble. It is designed with a bolt-and-nut system. Once assembled, this bolt system can never be pulled apart.

It can be assembled and disassembled hundreds of times over a lifetime of use and can be moved should you change homes. Because of this design, if you no longer need your bed, it can be handed down to others and should never end up in a landfill.

Mechanism

Ingenious balancing mechanism-stay level desk. Items up to 13" tall can remain on the desk when you open the bed.

It utilizes a safe,  piston lift system.

Construction

Made from domestic hardwood maple veneer  and trimmed in solid hardwood beech. Strongest built Murphy Desk Bed on the market today.

Assembly

Easiest desk bed to assemble, as it is designed with a through-bolt system so it can be taken apart and reassembled hundreds of times over a lifetime of use.

Moving

Our beds can be moved should you change homes. Our beds require 2 able-bodied people to assemble them, as real wood components are heavy.

Parameters

The mattress platform arrives fully assembled, 4" wider and 3" longer than the mattress. It is 18" deep and it does not bend or flex — narrow stairs, tight hallway turns, or small elevators may prevent it from fitting into your room

Height

This bed fastens to your wall through the top, and it requires room above the bed height for your drill to fit. We recommend your ceiling be 6" above the bed height.

Proven Product

There are over 6,000 of our desk beds in use every day in timeshares, fire stations, college housing, hospitality, and homes like yours.

Made in USA

Manufactured in California since 1990 under the country's strictest environmental standards.
